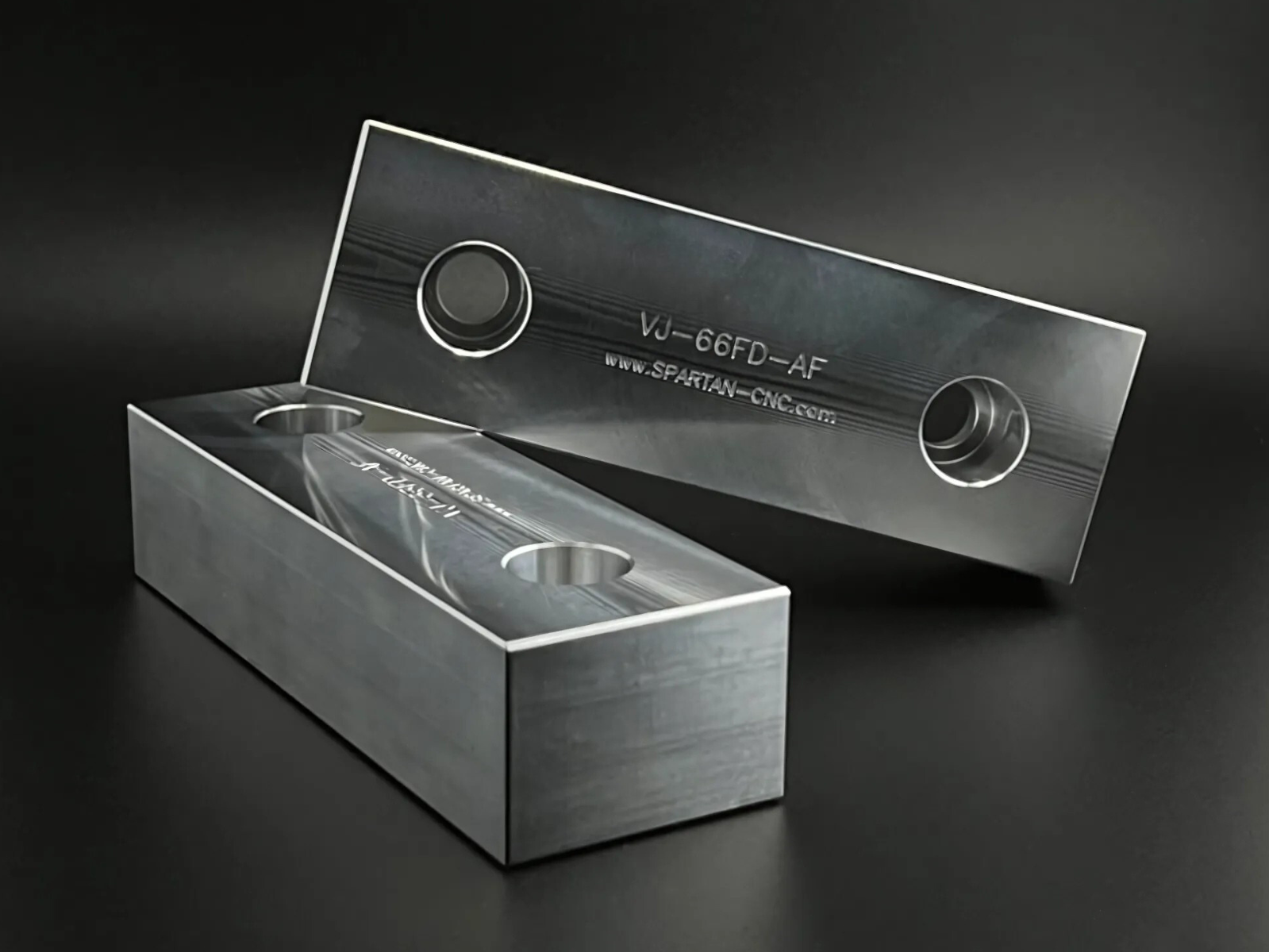

These aluminum soft jaws are fully machined. We bore the holes, face the front & back, contour all sides, and chamfer. They are inspected and cleaned prior to packaging. Made at our shop in Texas, USA.
- Quantity: 1 pair (2 pieces)
- For 6" vises
- 6.00" L x 2.00" H x 1.375" W
- Material: Aluminum 6061-T6511, ASTM B221-08, ISO 9001:2015, USA material
- Compatible with Kurt vises
-

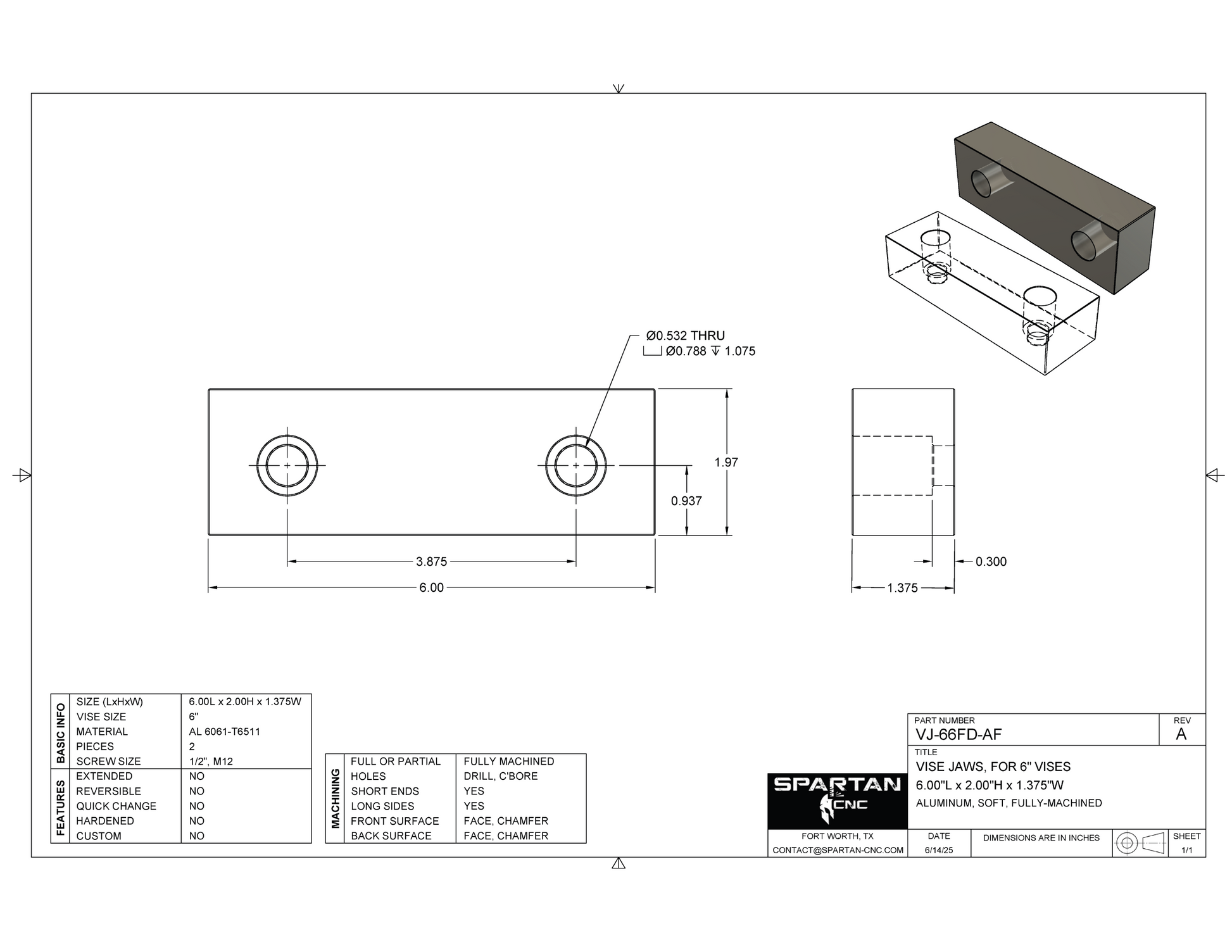

Dimensions
- Hole center distance = 3.875"
- Hole distance from bottom = 0.937"
- Hole diameter = 0.532"
- C'Bore diameter = 0.788"
- C'Bore distance from bottom = 0.300"
- Screw size = 1/2 M12
-
Options
- Extended = No
- Reversible = No
- Stepped = No
-
Quick-Change = No
