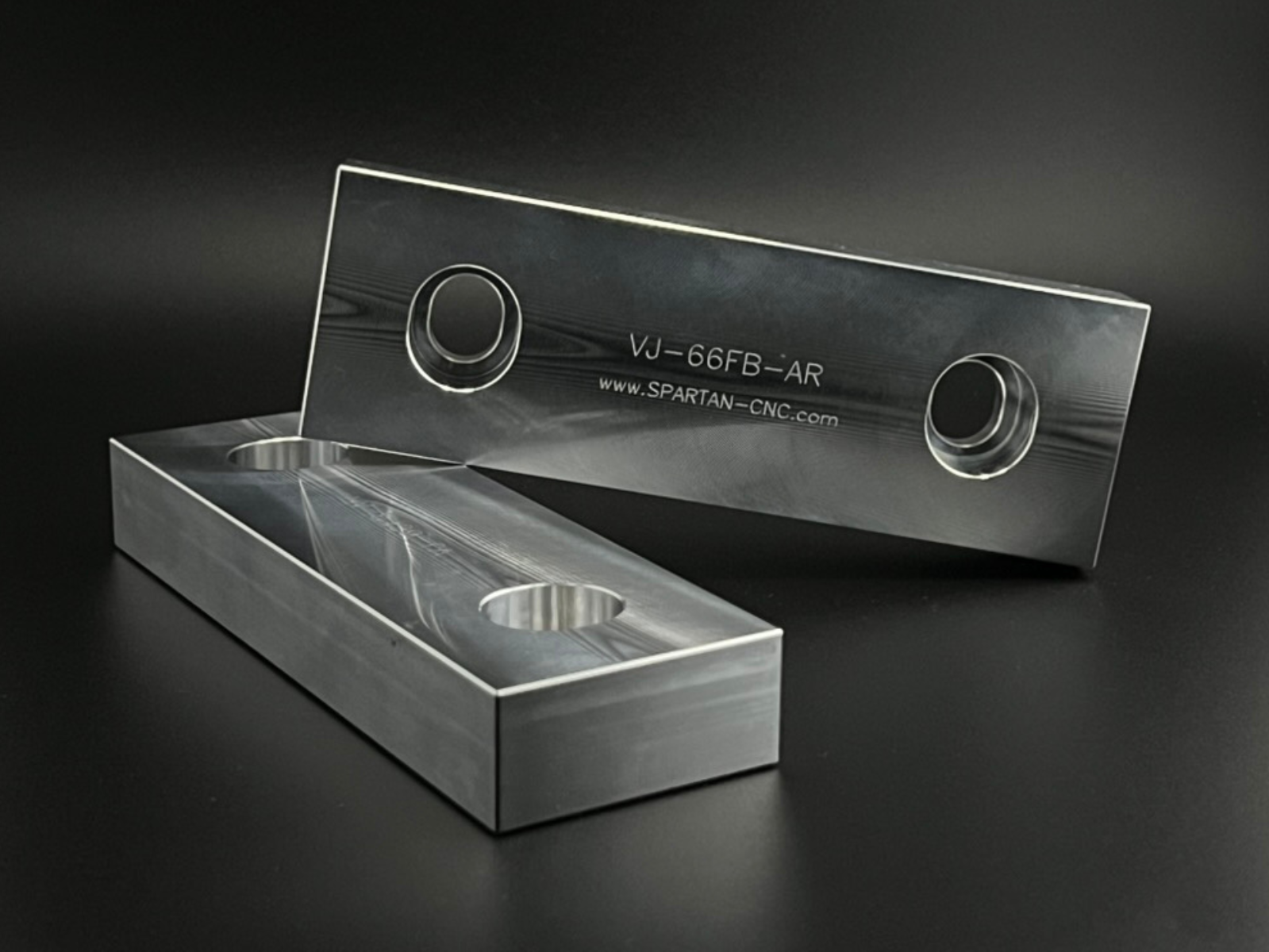

6" Vise Jaws, 6 x 2 x 0.875,
VJ-66FB-AR, Reversible, Aluminum

6" Vise Jaws, 6 x 2 x 0.875, ~VJ-66FB-AR, Reversible, Aluminum

$28.60 USD
$28.60 USD
Sale Sold out
These aluminum soft jaws are fully machined. We bore the holes, face the front & back, contour all sides, and chamfer. They are inspected and cleaned prior to packaging. Made at our shop in Texas, USA.
  • Quantity: 1 pair (2 pieces)
  • For 6" vises
  • 6.00" L x 2.00" H x 0.875" W
  • Material: Aluminum 6061-T6511, ASTM B221-08, ISO 9001:2015, USA material
  • Compatible with Kurt vises

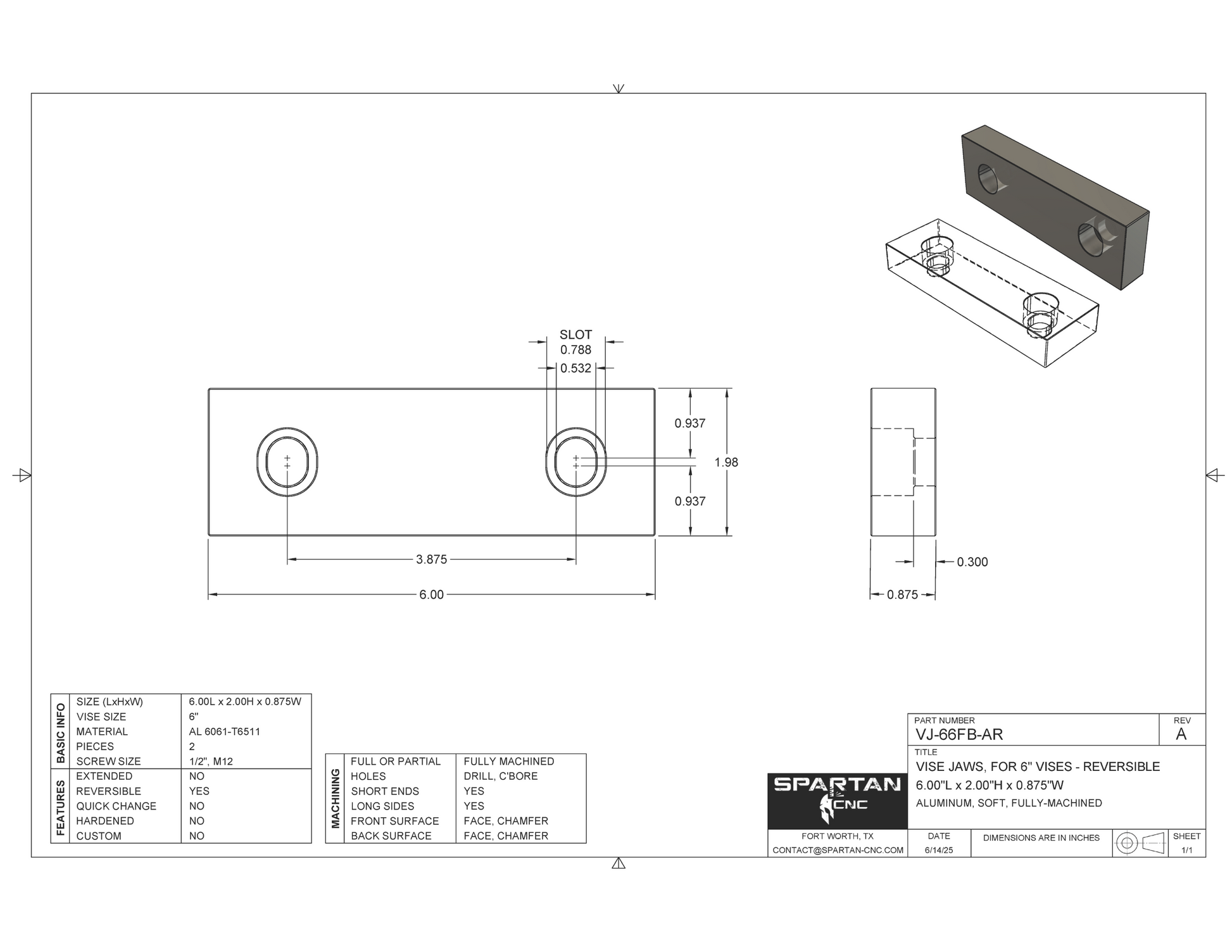

  • Dimensions
    • Hole center distance = 3.875"
    • Hole distance from bottom = 0.937"
    • Hole slot width = 0.532"
    • C'Bore diameter = 0.788"
    • C'Bore distance from bottom = 0.300"
    • Screw size = 1/2, M12
  • Options
    • Extended = No
    • Reversible = Yes, Top/Bottom
    • Stepped = No
    • Quick-Change = No
