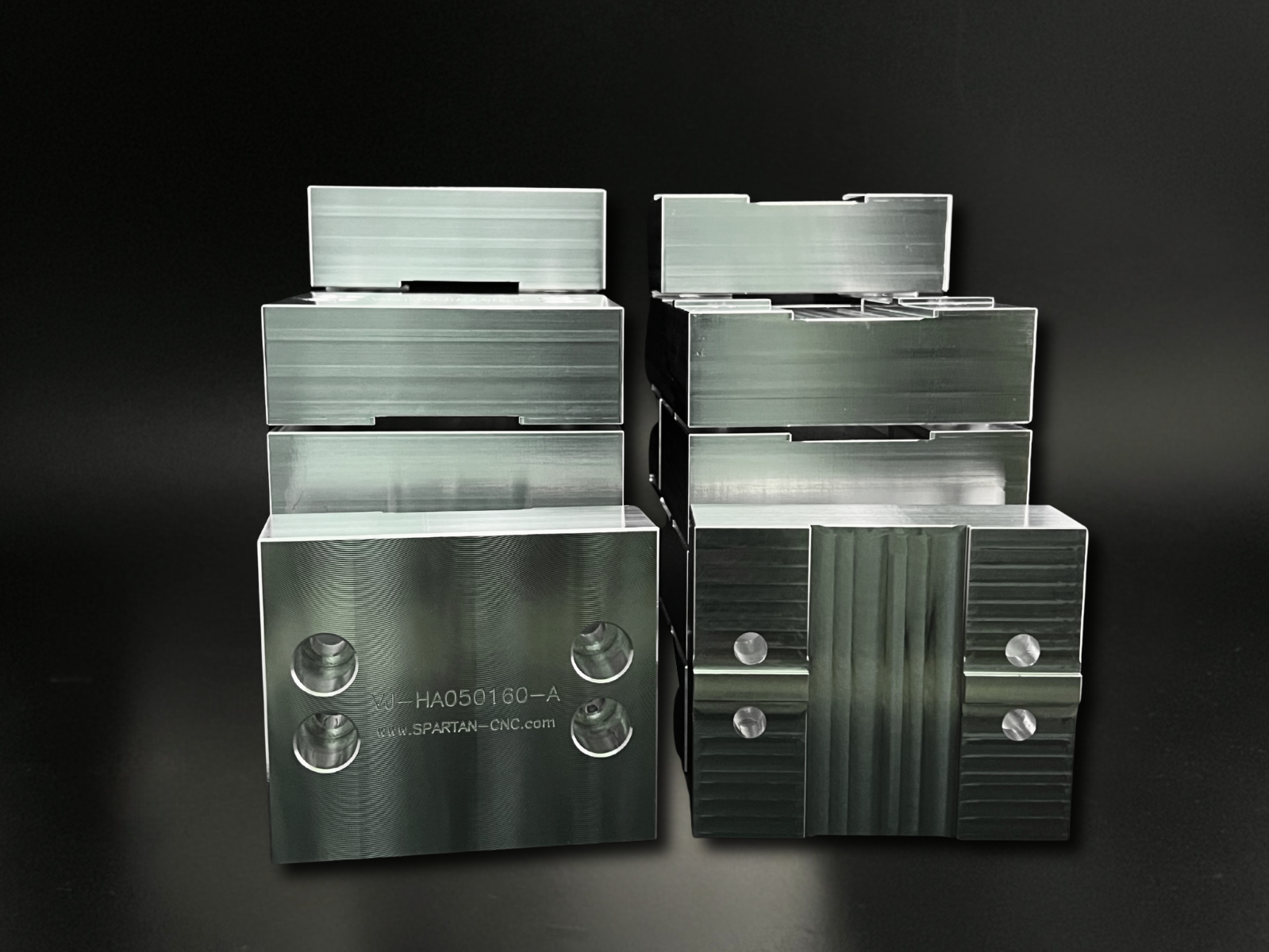

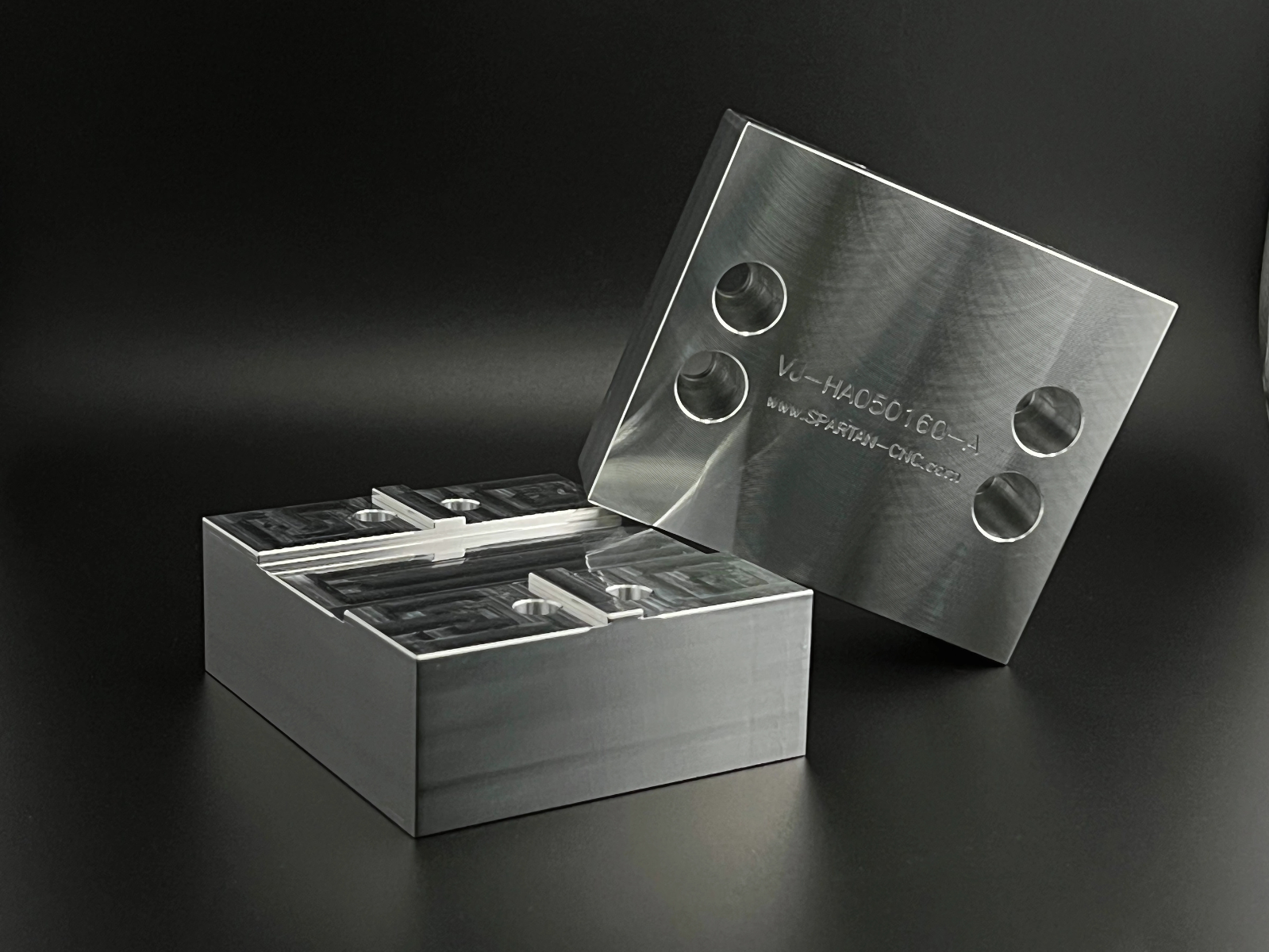

These aluminum soft jaws are fully machined. We bore the holes, face the front & back, contour all sides, and chamfer. Made at our shop in Texas, USA.
-
For Haas 4" (100mm) pneumatic self-centering vises
-
Similar to Haas 05-0160 jaws, tongue & groove (HASCVJ100x85A)
- 3.94" L x 3.35" W x 1.375" H
- Notes: The Overall Height of our jaw is 1.375" vs 1.500" for the Haas 05-0160, and the tongue is 0.075" high vs 0.125" on the Haas 05-0160
-

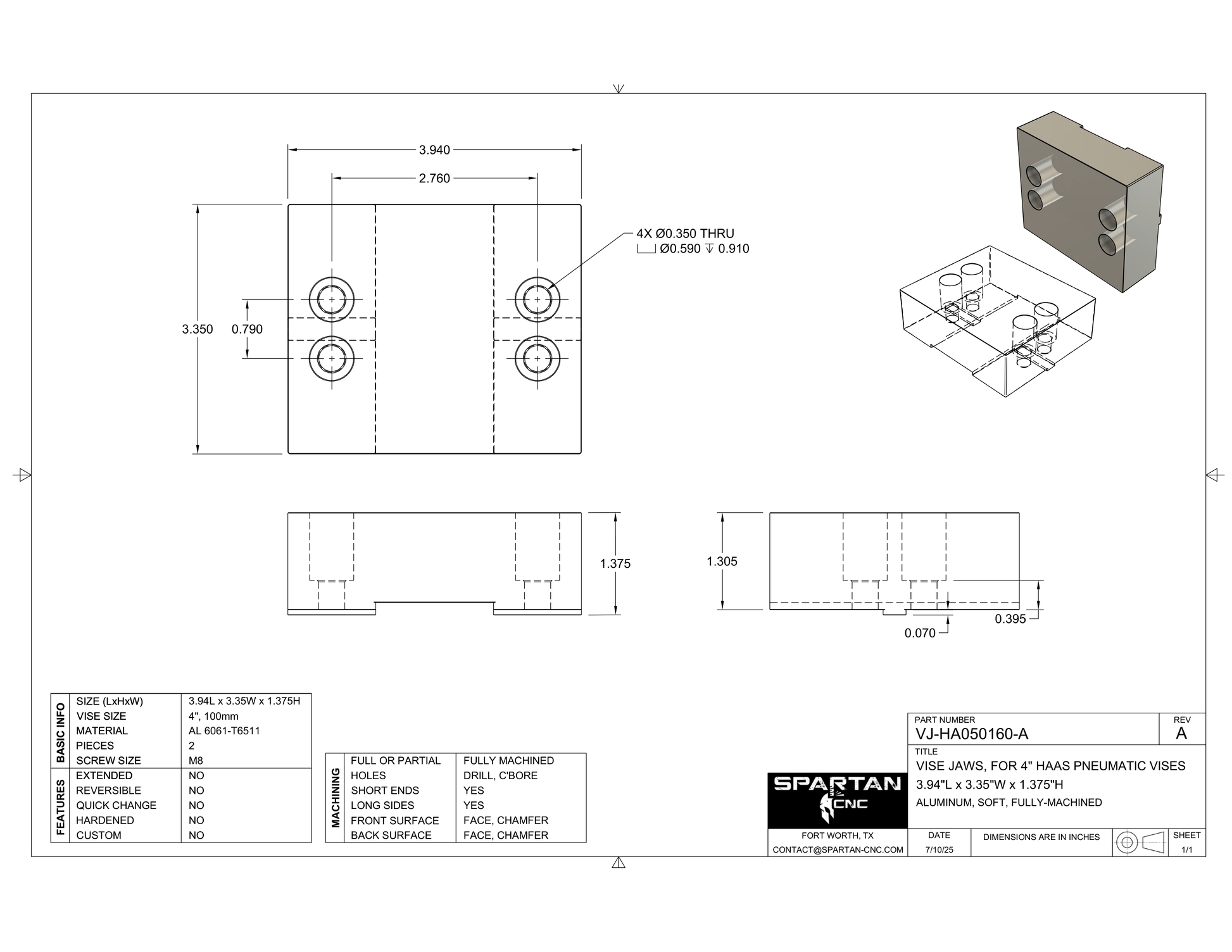

Dimensions
- Hole center distance (horizontal) = 2.76"
- Hole center distance (vertical) = 0.790"
-
Hole diameter = 0.350"
- C'Bore diameter = xx"
-
C'Bore distance from bottom = xx"
- Quantity: 10 pairs (20 pieces)
-
Material: Aluminum 6061-T6511, ASTM B221-08, ISO 9001:2015
-
